Installing an extension loop in a system with a multi-draw valve

Installing an extension loop in a system with a multi-draw valve
Topic LCI-USG-0278, Last Updated 10/16/2026

In a two-valve system, the extension loop is installed between the multi-draw valve and the sample needle.

  1. If system flow is running, stop the flow. On the touchscreen, tap COMMANDS, and then tap the pause button next to Flow is On.
  2. Open the sample manager fluidics door.

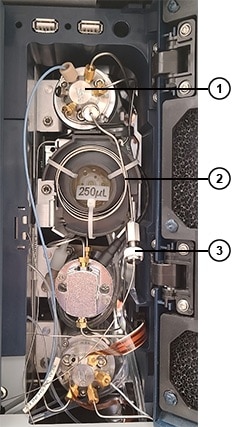

    Figure 1: Multi-draw valve system
    Multi-draw valve
    Extension loop with holder
    Sample needle tool-free fitting
  3. Disconnect the tool-free fitting that is attached to the extension loop at the sample needle.
    Figure 2: Extension loop latch
    Extension loop latch
  4. Disconnect the extension loop tool-free fitting at the multi-draw valve.
  5. Push the extension loop latch backward to release the extension loop holder and remove it from the sample manager.
  6. Place the replacement extension loop on the two hooks that hold the extension loop in position.
  7. Using the tool-free fittings, install the extension loop between the multi-draw valve and the sample needle.
  8. Push the extension loop latch forward to secure the extension loop holder in the sample manager.
  9. On the touchscreen, tap System > Module Configuration, and then tap the sample manager button . Tap Volumes, tap the size of the installed extension loop, and then tap DONE to select the correct extension loop size.
  10. On the touchscreen, tap Setup > Startup and follow the remaining on-screen prompts to prime and prepare the system for use.
  11. Perform the sample metering pump leak test after installing the extension loop.
    1. On the touchscreen, tap Health > Troubleshoot, and then tap the sample manager button .
    2. Tap Sample Metering Pump Leak Test and follow the remaining on-screen prompts to run the workflow in traditional mode, or tap the play button to run the workflow in express mode.
      Notes:
      • In express mode, the summary page appears showing the last selected settings (or default settings upon first system startup). After a 30-second countdown, the workflow runs automatically.
      • Starting with version 2.2.0, workflow progress indicators display the overall progress of the current workflow and the status of each workflow step. Steps are color-coded to show their current state: completed (green), in progress (amber), or pending (gray).
    3. Tap DONE.

Need Help? Connect with a Waters expert.


To avoid risk of personal injury and to prevent damage to laboratory equipment, always operate your Waters products in accordance with the applicable operational and safety information, your organization’s standard operating procedures, and local regulations.
